Now it’s a Huntsman

Autor renew 11 zgłoszenia 10 gru 2022 — 4 Lip 2024
133Polubienia
27Komentarze
Rozdział 01 / 11

11 rozdziały · Strona 1 z 2

renew Post otwierający

Now it’s a Huntsman

Painted the bow, really happy 😊
Polubione przez hermank and RNinMunich and
renew #2 of 11

Summer updao

This summer mostly solving technical difficulties.
Replaced the prop shaft for a 4mm flex shaft, with 40cm it was to long and made lot of vibration.
Tried different motors, now got 3670 1550KV with 40mm 3 blade prop and runs great with good speed,
Also made water cooling with 2 micro pumps.
After al technical problems the build is progressing again 😎
Dekking finished and made side pods,
Polubione przez hermank and RNinMunich and
renew #3 of 11

Painted the cabin structure

Fitted the roofs edge. Painted the cabin two tone black/white.
Made the side pods out of 1mm styreen plate, going for the long version
Polubione przez hermank and Madwelshman and
renew #5 of 11

Window frames

Finished the window frames, I used 1mm aluminium plate with 0,75mm vivak clear sheet. It was a lot of tryouts and faults. But job done!
Polubione przez hermank and Cashrc and
renew #6 of 11

Window frame

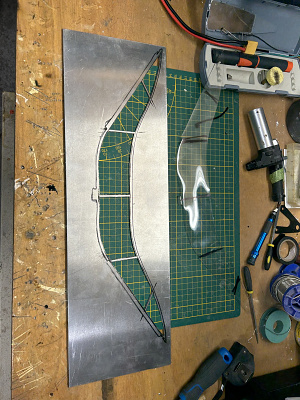

Made the upper window frame out of 1mm aluminium sheet.
Nervous job
Polubione przez Wez and pressonreguardless and
renew #7 of 11

Respray

So after months doing other projects is the huntsman in for a respray, 3e time 🙈.
Paint was cracking do to To fast layers on each other in to cold shed.
Polubione przez Len1 and BOATSHED and
renew #9 of 11

2K clear coat

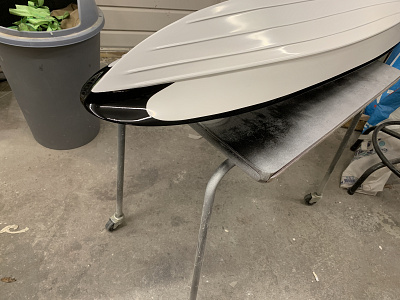

Did the 2k today 👌🏻. Came out pretty good. Hope moving forward from now and finish the boat😋
Polubione przez surfacesub and xtramaths and
renew #10 of 11

Moving Forward

Finished lacquer the deck, mounted the side pots. Progress!!
Polubione przez surfacesub and xtramaths and
